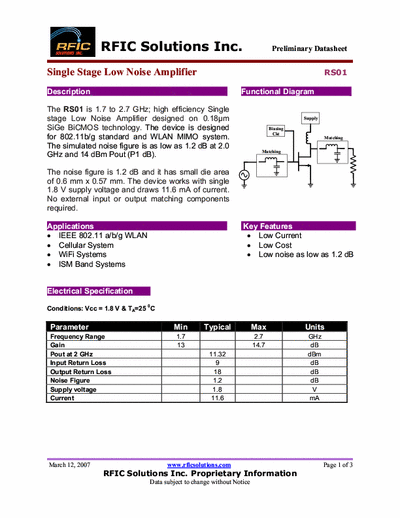

Preview for : Rficsolutions Inc. RS01 The RS01 is 1.7 to 2.7 GHz; high efficiency Single stage Low Noise Amplifier designed on 0.18μm SiGe BiCMOS technology. The device is designed for 802.11b/g standard and WLAN MIMO system. The simulated noise figure is as low as 1.2 dB at 2.0 GHz and 14 dBm Pout (P1 dB). Functional Diagram . The noise figure is 1.2 dB and it has small die area of 0.6 mm x 0.57 mm. The device works with single 1.8 V supply voltage and draws 11.6 mA of current. No external input or output matching components required.
